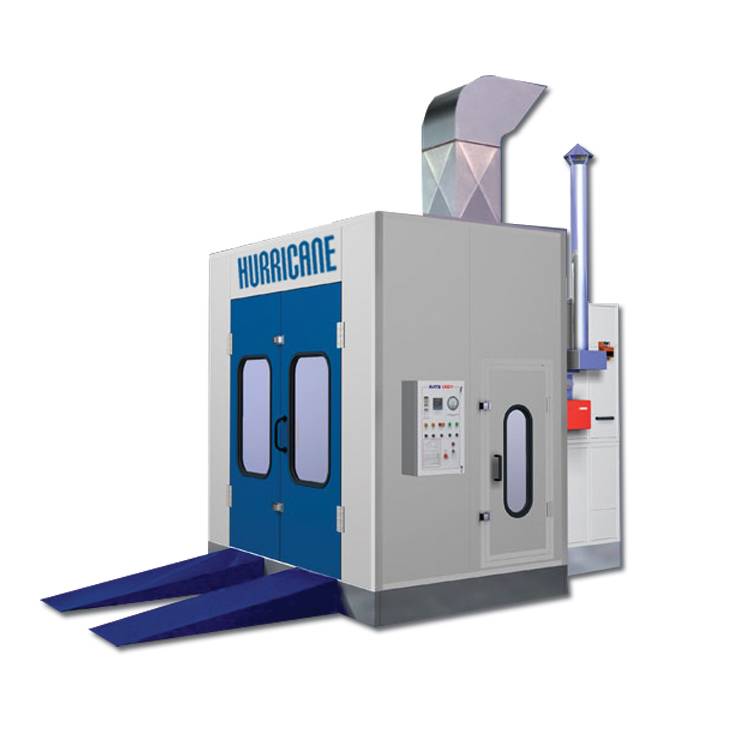

Parts Spray Booth YS-Mini-A

Product Overview: Parts Spray Booth YS-MINI-A for Professional Workshops

For South African panel beaters and automotive workshops needing a compact yet powerful solution for painting smaller components, the Hurricane Auto Parts Spray Booth YS-MINI-A is an exceptional choice. Engineered for precision and efficiency, this mini spray booth ensures a clean, controlled environment for flawless paint application on parts. Its robust design and comprehensive features make it an indispensable asset for any professional setup looking to optimise their painting process and achieve superior finishes, all while complying with international quality standards.

Key Features & Benefits

• Compact Yet Capable Design: Specifically sized (External: 4950mm x 3550mm x 3400mm; Internal: 3450mm x 3450mm x 2700mm) for efficient spraying of parts, making it ideal for workshops with limited space.
• Certified Quality Assurance: Peace of mind with internationally recognised CE and ISO90001 certifications, ensuring the booth meets stringent safety and quality standards.
• Efficient Ventilation System: Equipped with sufficient ducting to extend through a 5m high building roof, ensuring excellent air extraction and a healthier working environment. It features 1 x 3KW centrifugal fan for inlet and 1 x 3KW for exhaust, providing an impressive 10000m3/hour exhaust air capacity with manual vent control.
• Durable Basement Construction: Features a sturdy 300mm galvanised steel basement with 2 rows of grids and 3 rows of checkerplate, designed for longevity and safe operation.
• Optimised Access: Includes a substantial 2-fold main door (2200mm x 2650mm W x H) for easy entry and exit of parts, alongside a dedicated escape door (650mm x 1800mm W x H) for safety.
• Superior Insulation & Lighting: 50mm thick EPS fireproof, heat preservation wall panels maintain consistent internal temperatures. Brightly lit with 16 x 20W fluorescent ceiling lights, ensuring optimal visibility during all stages of the spraying process.
• Advanced Filtering System: Incorporates a Ceiling Filter, Exhaust fibreglass filter (Undergrid Paint Arrestor), and a Pre-filter for comprehensive air purification, protecting both operators and the quality of the finish.
• Integrated Heating System: A powerful Riello G10 Diesel burner with a stainless steel combustion chamber provides 100000Kcal heating productivity, with an electric damper for seamless transition between spraying and baking cycles.
• Intelligent Control Panel: User-friendly control system with switches for lighting, spraying, baking, winter spray function, time setting, failure indicator, temperature controller, temperature limit controller, and hour meter for precise operational management.
• Low Noise Operation: Designed to operate at less than 80 dB, creating a more comfortable working environment.

Applications

The YS-MINI-A Parts Spray Booth is perfectly suited for a wide range of automotive and industrial applications where precision painting of smaller components is critical. From car body parts and motorcycle components to industrial equipment pieces, this booth provides the ideal controlled environment for professional-grade results. Its capabilities are particularly valuable in panel beating shops, auto repair centres, and manufacturing facilities across South Africa.

Specifications

• External Dimensions (L x W x H): 4950mm x 3550mm x 3400mm
• Internal Dimensions (L x W x H): 3450mm x 3450mm x 2700mm
• Basement: 300mm galvanised steel, 2 rows of grids, 3 rows of checkerplate
• Ramps: 2 units, 520mm wide x 2000mm long
• Main Door (W x H): 2-Folds, 2200mm x 2650mm
• Escape Door (W x H): 1 Unit, 650mm x 1800mm
• Wall Panels: 50mm thick EPS fireproof, heat preservation
• Roof Plates: Galvanised steel
• Lighting (Ceiling): 4 x Units x 4 Pcs = 16 Pcs x 20W Fluorescent lights
• Glass: Clear tempered glass
• Intake and Exhaust System Positioning: Installed at rear of booth
• Intake and Exhaust System: 1 x 3KW centrifugal fan for inlet, 1 x 3KW centrifugal fan for exhaust
• Exhaust Air Capacity: 10000m3/hour with manual vent control device
• Filtering System: Ceiling Filter, Exhaust fibreglass filter (Undergrid Paint Arrestor), Pre-filter
• Heating System: Riello G10 Diesel burner with stainless steel combustion chamber
• Heating Productivity: 100000Kcal
• Control System Functions: Lighting switch, spraying, bake, spray for winter, baking functions, time setting, failure indicator, temperature controller, temperature limit controller, hour meter
• Noise Level: < 80 dB
• Power Supply: 220V or 380V (as per customer requirement)
• Total Power: 6.5KW
• Certifications: CE, ISO90001
