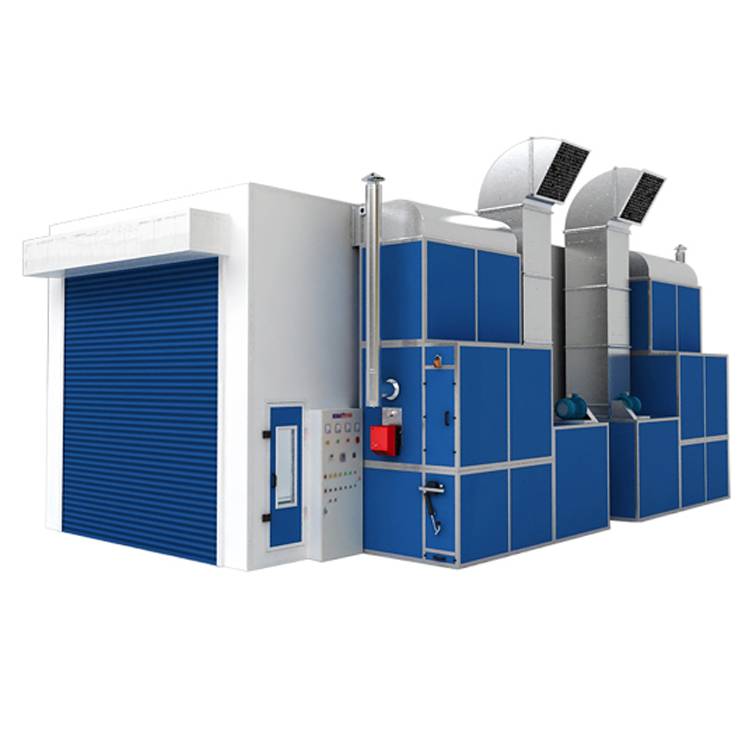

Truck Spray Booth 12m Hurricane YS-TB12 (NEW)

Product Overview: Hurricane Truck Spray Booth 12m YS-TB12

For South African automotive workshops and panel beaters seeking robust and reliable large-scale vehicle painting solutions, the Hurricane Truck Spray Booth 12m YS-TB12 sets a new standard. This industrial-grade spray booth is engineered to accommodate the substantial dimensions of trucks, buses, and other heavy-duty vehicles, making it an indispensable asset for commercial vehicle maintenance and customisation operations. The Hurricane YS-TB12 ensures superior paint application quality and a safe working environment, backed by full CE Certification and a 1-year guarantee.

Designed for direct mounting onto a level concrete slab, the Hurricane YS-TB12 eliminates the need for a basement or grids. This innovative design means the only weight limit for vehicles entering the booth is determined by the concrete slab's own carrying capacity, offering unparalleled flexibility for heavy vehicle workshops. Its side-wall extraction system efficiently removes paint fumes and overspray, contributing to a clean and safe workspace.

The Hurricane YS-TB12 12m truck spray booth boasts approvals from major vehicle manufacturers, ensuring its compliance with industry-leading standards (note: excluding Mercedes-Benz and BMW). This makes it an ideal choice for a wide range of professional panel beating and spray painting businesses across South Africa.

Key Features of the Hurricane YS-TB12 Truck Spray Booth

• Robust Construction: Features 70mm thick EPS fireproof and heat-preserving wall panels (0.426mm steel plate, EPS density = 12KG/m3) and 50mm thick Rock wool roof panels for optimal insulation.
• Direct Slab Mounting: No basement required, mounts directly onto a level concrete slab, providing ultimate weight capacity flexibility.
• Efficient Extraction System: Side-wall extraction (left or right positioning) ensures effective removal of fumes and overspray, improving air quality and safety.
• Powerful Air Circulation: Equipped with 2 x intake units (4 x 5.5KW belt drive centrifugal fans, 62000m3/hour total air capacity) and 2 x exhaust units (2 x 7.5KW belt drive centrifugal fans, 50000m3/hour total air capacity with manual vent control).
• Advanced Filtering: Includes a multi-stage filtering system with a Ceiling Filter (560G/m2 efficiency >=93%), Exhaust fibreglass filter (Paint Arrestor 250G/m2), Pre-filter (Pocket Filter), and Exhaust filter (Pocket Filter).
• Reliable Heating: Features 2 x Riello RGS5 Diesel burners with a 1.5mm stainless steel combustion chamber, delivering 520000Kcal heating productivity and an air damper for seamless spraying to baking cycles.
• Optimal Lighting: Comprehensive illumination with 16 x units (64 x 36W fluorescent lights) in the ceiling and 18 x units (72 x 36W fluorescent lights) on the side walls.
• User-Friendly Control System: Includes lighting switch, spraying, bake and spray for winter functions, time setting, failure indicator, temperature controller, temperature limit controller, pressure gauge, and hour meter.
• Certified Quality: Full CE Certification and a 1-year guarantee, ensuring peace of mind and operational reliability.

Specifications

• External Dimensions (L x W x H): 12144mm x (5146mm + 1450mm) x 5100mm
• Internal Dimensions (L x W x H): 12000mm x 5000mm x 4500mm
• Basement: No basement, mounts onto level concrete slab.
• Main Door: 3600mm x 4300mm (W x H) Electric Shutter Door
• Escape Doors: 5 units, 800mm x 2000mm (W x H) with tempered glass window
• Wall Panels: 70mm thick EPS fireproof, heat preservation wall panels (0.426mm steel plate, EPS density = 12KG/m3)
• Roof Panels: 50mm thick Rock wool panel for heat preservation
• Lighting: Ceiling Lights: 16 units x 4Pcs = 64 Pcs x 36W Fluorescent lights; Side Wall Lights: 18 units x 4Pcs = 72 Pcs x 36W Fluorescent lights
• Glass: Clear tempered glass
• Intake and Exhaust System Positioning: Installed at Left or Right of booth
• Intake and Exhaust System: 2 x Intake units (totaling 4 x 5.5KW belt drive centrifugal fans, total air capacity = 62000m3/hour); 2 x Exhaust units (totaling 2 x 7.5KW belt drive centrifugal fans, total air capacity = 50000m3/hour with manual vent control device)
• Filtering System: Ceiling Filter (560G/m2 efficiency >=93%) and Exhaust fibreglass filter (Paint Arrestor 250G/m2), also Pre-filter (Pocket Filter) and Exhaust filter (Pocket Filter)
• Heating System: 2 x Riello RGS5 Diesel burners with 1.5mm stainless steel combustion chamber, heating productivity = 520000Kcal, with air damper from spraying to baking cycle
• Control System: Lighting switch, spraying, bake and spray for winter and baking functions, time setting, failure indicator, temperature controller, temperature limit controller, pressure gauge and hour meter.
• Noise Level: < 85 dB
• Power Supply: 380V 3-Phase
• Total Power: 44KW
• Certifications: Full CE Certification
• Guarantee: 1 year
• Manufacturer Approvals: Has major vehicle manufacturer approvals (excluding Mercedes-Benz and BMW)
