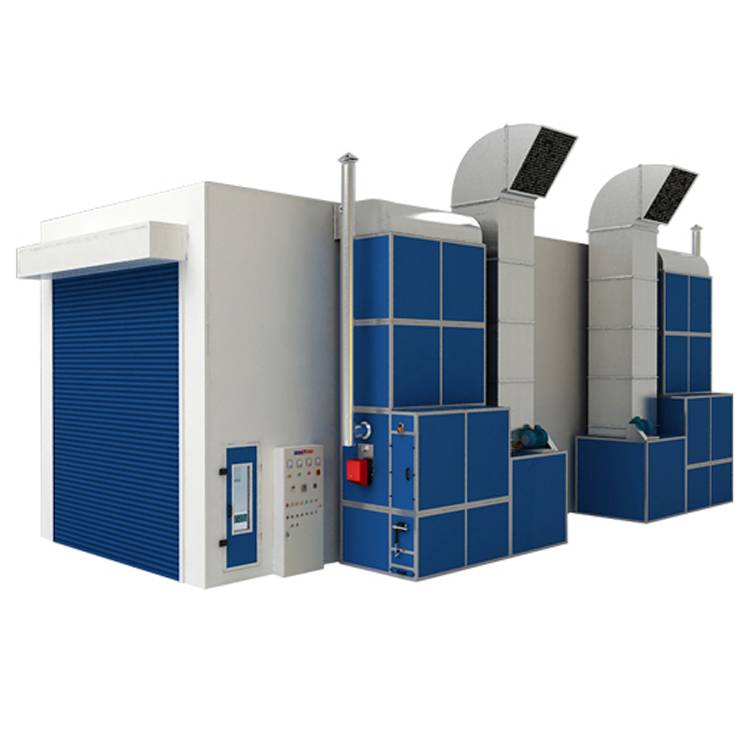

Truck Spray Booth 15m Hurricane (YS-TB15)

Product Overview: Hurricane Truck Spray Booth 15m (YS-TB15)

For large-scale panel-beating and automotive workshops in South Africa, the Hurricane Truck Spray Booth 15m (YS-TB15) offers a professional and highly efficient solution for painting commercial vehicles. Engineered to accommodate large trucks, this 15-meter spray booth provides a vast internal space for comprehensive paint jobs, ensuring a flawless finish every time. The YS-TB15 model is designed for optimal performance and cost efficiency, featuring a unique side-wall extraction system that eliminates the need for expensive and time-consuming pit work, making installation simpler and reducing overall project costs. With full CE Certification and major vehicle manufacturer approvals (excluding Mercedes-Benz and BMW), the Hurricane YS-TB15 stands as a reliable and compliant choice for heavy-duty automotive finishing.

Key Features & Benefits for Your Workshop

Invest in the Hurricane Truck Spray Booth 15m (YS-TB15) and upgrade your workshop's capabilities with these standout features:

• Optimised Side-Wall Extraction: This innovative design allows for extraction to be mounted on either the left or right side of the booth, significantly reducing installation complexity and eliminating the need for costly pit construction.
• Expansive Work Area: A generous 15-meter internal length provides ample space for painting large commercial vehicles and trucks, ensuring unhindered access and superior finish quality.
• Robust Construction: Equipped with 70mm thick, fireproof EPS wall panels and 50mm thick roof panels, both featuring 0.426mm steel plates and a tongue-and-groove interlock system for excellent heat preservation and durability.
• Advanced Heating System: Two powerful Riello RGS5 Diesel burners with 1.5mm stainless steel combustion chambers provide rapid and efficient heating, ensuring optimal painting and baking conditions.
• Comprehensive Lighting: Features extensive ceiling and side-wall fluorescent lighting (72 pcs x 36W ceiling, 88 pcs x 36W side-wall) for maximum visibility, crucial for high-quality paint application.
• Efficient Filtration: Multi-stage filtering system including ceiling filter (efficiency >=93%), exhaust fiberglass filter, pre-filter (pocket filter), and exhaust filter (pocket filter) for a clean, dust-free environment.
• Certified Quality: Full CE Certification and approvals from major vehicle manufacturers (excluding Mercedes-Benz and BMW) ensure this truck spray booth meets stringent international standards.

Ideal Applications

The Hurricane YS-TB15 is specifically engineered for:

• Large commercial vehicle panel beating and spray painting
• Truck and bus refurbishment centres
• Industrial painting facilities requiring ample space
• Workshops seeking a high-volume, professional spray booth solution

Specifications

• Model: Hurricane Truck Spray Booth 15m (YS-TB15)
• External Dimensions (L x W x H): 15144mm x (5146mm + 1750mm) x 5600mm
• Internal Dimensions (L x W x H): 15000mm x 5000mm x 5000mm
• Basement: No basement required; mounts onto level concrete slab
• Main Door: 4000mm (W) x 4600mm (H) Electric Shutter Door (Aluminium Alloy Frame with PU Insulation)
• Escape Doors: 5 units, 800mm (W) x 2000mm (H) with tempered glass window
• Wall Panels: 70mm thick, 1150mm wide EPS fireproof, heat preservation with 0.426mm steel plate and tongue-and-groove interlock system
• Roof Plates: 50mm thick, 1150mm wide EPS fireproof, heat preservation with 0.426mm steel plate and tongue-and-groove interlock system
• Lighting: Ceiling Lights: 18 units x 4 pcs = 72 pcs x 36W Fluorescent lights; Side Wall Lights: 22 units x 4 pcs = 88 pcs x 36W Fluorescent lights
• Glass: Clear tempered glass
• Intake & Exhaust System Positioning: Installed at left or right of booth
• Intake System: 2 x intake units, 4 x 7.5KW belt drive centrifugal fans, total air capacity 84000m³/hour
• Exhaust System: 2 x exhaust units, 2 x 11KW belt drive centrifugal fans, total air capacity 72000m³/hour with manual vent control device
• Filtering System: Ceiling Filter (560G/m² efficiency >=93%), Exhaust fiberglass filter (Undergrid Paint Arrestor 250G/m²), Pre-filter (Pocket Filter), Exhaust filter (Pocket Filter)
• Heating System: 2 x Riello RGS5 Diesel burners with stainless steel 1.5mm combustion chamber, heating productivity 520000Kcal, with air damper from spraying to baking cycle
• Control System: Lighting switch, spraying, bake and spray for winter and baking functions, time setting, failure indicator, temperature controller, temperature limit controller, pressure gauge and hour meter
• Noise Level: < 85 dB
• Power Supply: 380V 3 Phase
• Total Power: 59.5KW
• Certification: Full CE Certification
• Warranty: 1 year guarantee
• Manufacturer Approvals: Has major vehicle manufacturer approvals (excluding Mercedes-Benz and BMW)

Why Choose Hurricane Auto for Your Truck Spray Booth?

At Hurricane Auto, we pride ourselves on supplying top-tier panel-beating and automotive workshop equipment across South Africa. The Hurricane YS-TB15 Truck Spray Booth 15m exemplifies our commitment to quality, efficiency, and workshop profitability. With this advanced spray booth, you're not just purchasing equipment; you're investing in a solution that enhances productivity, ensures superior finish quality for large vehicles, and provides long-term reliability. Trust Hurricane Auto for equipment that meets the rigorous demands of the modern automotive industry.
