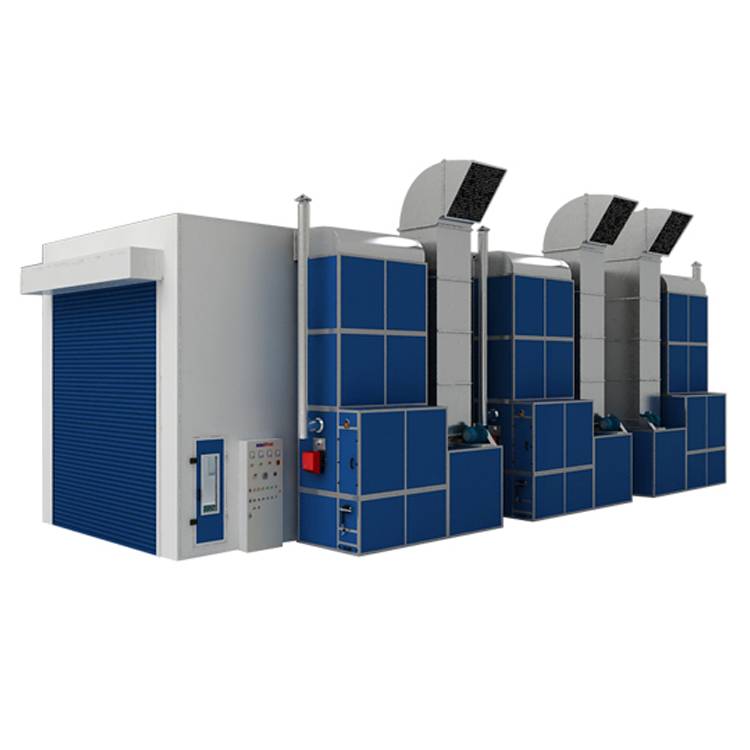

Truck Spray Booth 18m Hurricane (YS-TB18)

Product Overview: Hurricane Truck Spray Booth 18m (YS-TB18)

For South African automotive workshops specialising in commercial vehicles, the Hurricane YS-TB18 18m Truck Spray Booth offers a robust and efficient solution for heavy-duty painting and panel beating. This popular 18-meter length spray booth is engineered for optimal performance, featuring a convenient side wall extraction system that mounts directly onto a level concrete slab. Designed to meet the demanding requirements of truck repair and refinishing, the YS-TB18 provides a controlled environment for superior paint finishes.

Proudly supplied by Hurricane Auto, this commercial truck spray booth is built with durability and user-friendliness in mind, ensuring reliable operation for years to come. Its design allows for flexible installation, with extraction mounted on either the left or right side, adapting to your workshop's layout. The YS-TB18 holds full CE Certification and comes with a 1-year guarantee, reflecting Hurricane Auto's commitment to quality and peace of mind for our clients. It also boasts major vehicle manufacturer approvals, making it a trusted choice for professional truck panel beaters across South Africa.

Key Features and Benefits

• Optimised for Trucks: 18-meter internal length, ideal for a wide range of commercial vehicles and heavy-duty equipment.
• Flexible Side Wall Extraction: Efficient air circulation system mounts directly onto a level concrete slab, with extraction configurable to the left or right.
• Robust Construction: Features 70mm thick, 1150mm wide EPS fireproof, heat preservation wall panels with 0.426mm steel plate for excellent insulation and longevity.
• Advanced Filtering System: Equipped with a comprehensive filtering system including Ceiling Filter, Exhaust fiberglass filter, Pre-filter (Pocket Filter), and Exhaust filter (Pocket Filter) for a clean spray environment.
• Powerful Heating System: Three Riello RGS5 Diesel burners deliver rapid and consistent heating with a productivity of 780,000 Kcal, ensuring optimal baking cycles.
• Comprehensive Lighting: Abundant illumination from 96 ceiling lights and 104 side wall fluorescent lights (36W each) provides exceptional visibility for precision work.
• User-Friendly Control System: Intuitive controls for lighting, spraying, baking (winter and summer modes), time setting, temperature management, and failure indication.
• Safety and Compliance: Full CE Certification and major vehicle manufacturer approvals (excluding Mercedes-Benz and BMW) ensure industry standards are met.

Applications

The Hurricane YS-TB18 18m Truck Spray Booth is perfectly suited for a variety of heavy-duty automotive and commercial applications, including:

• Truck and bus body repair shops
• Fleet maintenance facilities
• Commercial vehicle painting and refinishing centres
• Industrial equipment painting
• Any workshop requiring a large, high-performance spray painting environment.

Specifications

• Model: Hurricane YS-TB18 18m Truck Spray Booth
• External Dimensions (L x W x H): 18144mm x (5146mm + 1750mm) x 5600mm
• Internal Dimensions (L x W x H): 18000mm x 5000mm x 5000mm
• Basement: No basement required, mounts onto level concrete slab
• Extraction System: Side wall extraction (left or right configurable)
• Main Door (W x H): 4000mm x 4600mm (EPS density = 18KG/m³, tempered glass windows)
• Escape Doors: 5 units, 800mm x 2000mm (W x H, with tempered glass window)
• Wall Panels: 70mm thick, 1150mm wide EPS fireproof, heat preservation (0.426mm steel plate)
• Roof Panels: 50mm thick, 1150mm wide EPS fireproof, heat preservation (0.426mm steel plate)
• Ceiling Lights: 24 units x 4 pcs = 96 pcs x 36W Fluorescent lights
• Side Wall Lights: 26 units x 4 pcs = 104 pcs x 36W Fluorescent lights
• Glass Type: Clear tempered glass
• Intake & Exhaust System Positioning: Installed at Left or Right of booth
• Intake Units: 3 x intake units totalling 6 x 5.5KW belt drive centrifugal fans (Total air capacity = 93000m³/hour)
• Exhaust Units: 3 x exhaust units totalling 3 x 11KW belt drive centrifugal fans (Total air capacity = 84000m³/hour, with manual vent control device)
• Heating System: 3 x Riello RGS5 Diesel burners with stainless steel 1.5mm combustion chamber (Heating productivity = 780000Kcal, with air damper from spraying to baking cycle)
• Control System: Lighting switch, spraying, bake and spray for winter and baking functions, time setting, failure indicator, temperature controller, temperature limit controller, pressure gauge, hour meter
• Noise Level: < 85 dB
• Power Supply: 380V 3 Phase
• Total Power: 75.5KW
• Certification: Full CE Certification
• Guarantee: 1 year
• Manufacturer Approvals: Major vehicle manufacturer approvals (excluding Mercedes-Benz and BMW)
