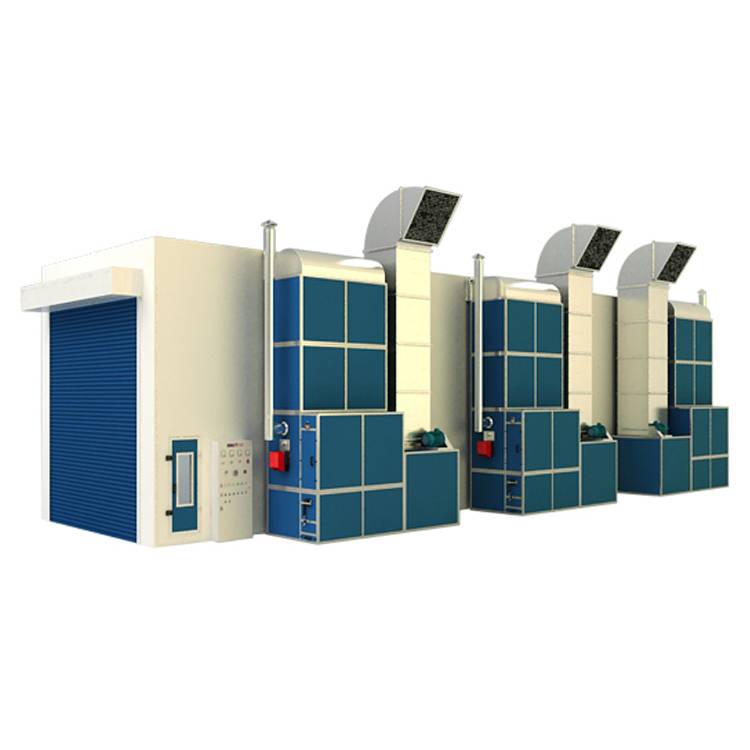

Truck Spray Booth 20m Hurricane (YS-TB20)

Product Overview: Hurricane Truck Spray Booth 20m YS-TB20

For South African panel beaters and automotive workshops demanding uncompromising quality and efficiency for large vehicle refinishing, the Hurricane Truck Spray Booth 20m YS-TB20 stands as a premier solution. This robust, CE Certified truck spray booth is engineered to handle substantial commercial vehicles, offering an expansive 20-metre internal length. Its innovative design, featuring side wall extraction and direct mounting onto a concrete slab, eliminates traditional weight limitations imposed by grids, making it ideal for a wide array of trucks and commercial vehicles.

With major vehicle manufacturer approvals (excluding Mercedes-Benz and BMW), the Hurricane YS-TB20 ensures your workshop meets industry standards, delivering superior paint finishes and a safe working environment. This state-of-the-art spray booth combines powerful ventilation, efficient heating, and optimal lighting to achieve perfect results every time.

Key Features for Professional Workshops

• Expansive 20-Metre Interior: Ample space (20000mm L x 5000mm W x 5000mm H) specifically designed for large commercial vehicles and trucks.
• Grid-Free Design: Mounts directly onto a level concrete slab, offering unparalleled weight capacity determined solely by the floor's strength.
• CE Certified & Approved: Full CE Certification and 1-year guarantee, with major vehicle manufacturer approvals (excluding Mercedes-Benz and BMW), ensuring compliance and reliability.
• Efficient Side Wall Extraction: Features a powerful extraction system through the side wall (left or right option) with a total air capacity of 108,000m³/hour, ensuring rapid fume removal.
• Optimised Climate Control: Equipped with three Riello RGS5 Diesel burners providing 780,000 Kcal heating productivity, with an air damper for seamless spraying to baking cycles.
• Superior Lighting & Visibility: Comprehensive lighting system with 104 ceiling lights and 120 side wall fluorescent lights (all 36W) ensures excellent visibility during critical paint application.
• Robust & Durable Construction: Features 70mm thick, 1150mm wide EPS fireproof, heat preservation wall and roof panels with 0.426mm steel plate for longevity and insulation.

Advanced Filtration System

The Hurricane YS-TB20 incorporates a multi-stage filtering system to maintain a clean environment and high air quality:

• Ceiling Filter: High-efficiency (≥93%) 560G/m² filter for clean intake air.
• Exhaust Fiberglass Filter: Undergrid Paint Arrestor (250G/m²) to capture paint particles.
• Pre-filter (Pocket Filter): Additional filtration for intake air.
• Exhaust Filter (Pocket Filter): Further ensures clean air expulsion.

Specifications

• Product Name: Truck Spray Booth 20m Hurricane (YS-TB20)
• SKU: YS-TB20
• External Dimensions (L x W x H): 20144mm x (5146mm + 1750mm) x 5600mm
• Internal Dimensions (L x W x H): 20000mm x 5000mm x 5000mm
• Basement: No basement; mounts onto level concrete slab
• Extraction: Through side wall (Left or Right)
• Main Door (W x H): 4000mm x 4600mm, EPS density = 18KG/m³, tempered glass windows
• Escape Doors: 5 units, 800mm x 2000mm (W x H), tempered glass windows
• Wall & Roof Panels: 70mm thick, 1150mm wide EPS fireproof, heat preservation, 0.426mm steel plate
• Ceiling Lights: 26 units x 4 pieces = 104 pieces x 36W Fluorescent lights
• Side Wall Lights: 30 units x 4 pieces = 120 pieces x 36W Fluorescent lights
• Intake & Exhaust System Positioning: Installed at Left or Right of booth
• Intake System: 3 x Intake units, 6 x 7.5KW belt drive centrifugal fans, total 126,000m³/hour air capacity
• Exhaust System: 3 x Exhaust units, 3 x 11KW belt drive centrifugal fans, total 108,000m³/hour air capacity, with manual vent control device
• Heating System: 3 x Riello RGS5 Diesel burners, 1.5mm stainless steel combustion chamber, 780,000Kcal heating productivity, air damper for spraying to baking cycle
• Control System: Lighting switch, spraying, bake and spray for winter functions, baking functions, time setting, failure indicator, temperature controller, temperature limit controller, pressure gauge, hour meter.
• Noise Level: < 85 dB
• Power Supply: 380V 3Phase
• Total Power: 88.5KW
• Certification: Full CE Certification
• Guarantee: 1 year
• Vehicle Manufacturer Approvals: Major approvals, excluding Mercedes-Benz and BMW
